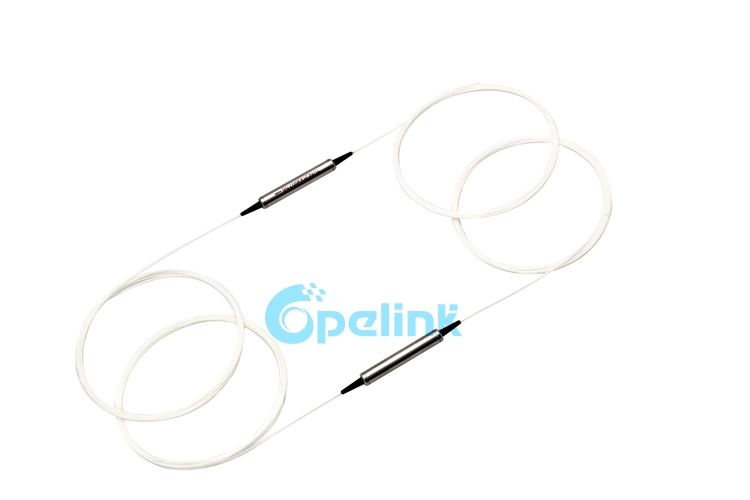

Polarization-Insensitive Single/Dual Stage Optical Isolator
Order Information:
We can supply a custom Optical isolator service that can combine the best features of our entire Fiber isolator products, welcome to inquire.
Features
High Isolation
Low Insertion Loss
High Return Loss
Low Polarization Sensitivity
Applications
Optical Fiber Amplifiers
CATV Fiber optic Links
Fiber optic Systems Testing
Fiber optic LAN Systems
Fiber Laser
Specifications
1. ALL specification include the effect of all states of polarization.
2. Values referenced without connectors,insertion loss for a connector-pair is 0.20dB to 0.30dB.
Features
High Isolation
Low Insertion Loss
High Return Loss
Low Polarization Sensitivity
Applications
Optical Fiber Amplifiers
CATV Fiber optic Links
Fiber optic Systems Testing
Fiber optic LAN Systems
Fiber Laser
Specifications
| Parameters | Unit | Single Stage | Dual Stage |
| Operating Wavelength | nm | 1310,1480,1550,1600 | |
| Typical Peak Isolation | dB | ≥40 | ≥55 |
| Minimum Isolation | dB | ≥30 | ≥40 |
| Typical Insertion Loss | dB | ≤0.5 | ≤0.6 |
| Maximum Insertion Loss | dB | ≤0.6 | ≤0.8 |
| PDL | dB | ≤0.05 | ≤0.1 |
| PDM | Ps | ≤0.25 | ≤0.05 |
| Bandwidth | nm | ±20nm | ±30nm |
| Return Loss | dB | ≥55 | ≥55 |
| Maximum Power Handing | mW | 300 | |
| Operating Temperature | ºC | 0~+70 | |
| Storage Temperature | ºC | -40~+85 | |
2. Values referenced without connectors,insertion loss for a connector-pair is 0.20dB to 0.30dB.
Order Information:
| Isolator Type | Wavelength | Fiber Type | Package | Pigtail Type | Fiber Length | In/Out Connector |
| IS=Single stage IU=Dual stage | 13=1310nm 14=1480nm 15=1550nm LB=L Band | 1=G652D 2= G657A1 | C2=5.5X30mm Steel Tube B8=3.0x25mm Steel Tube D=90X20X9.5mm Plastic Box | B=0.25mm Bare Fiber L=900um S=2.0mm R=3.0mm | 10=1.0m 15=1.5m 20=2.0m | 00=None FA=FC/APC FU=FC/UPC SA=SC/APC SU=SC/UPC ST=ST/PC LU=LC/UPC LA=LC/APC |
